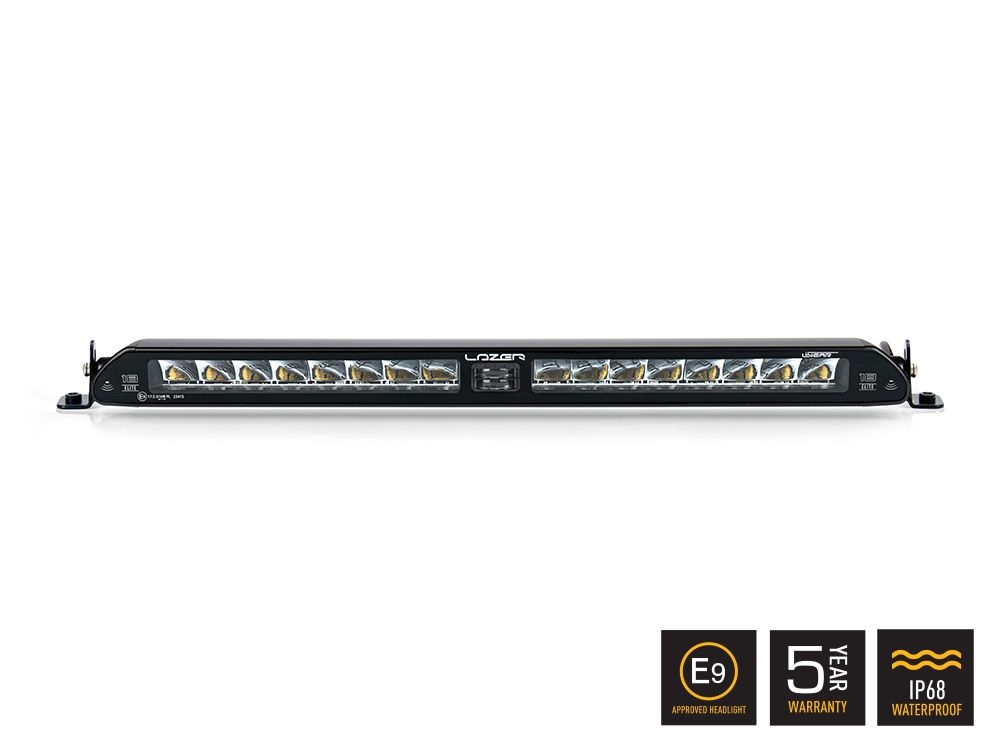

Led bar Linear-18 Elite I-LBA fra Lazer

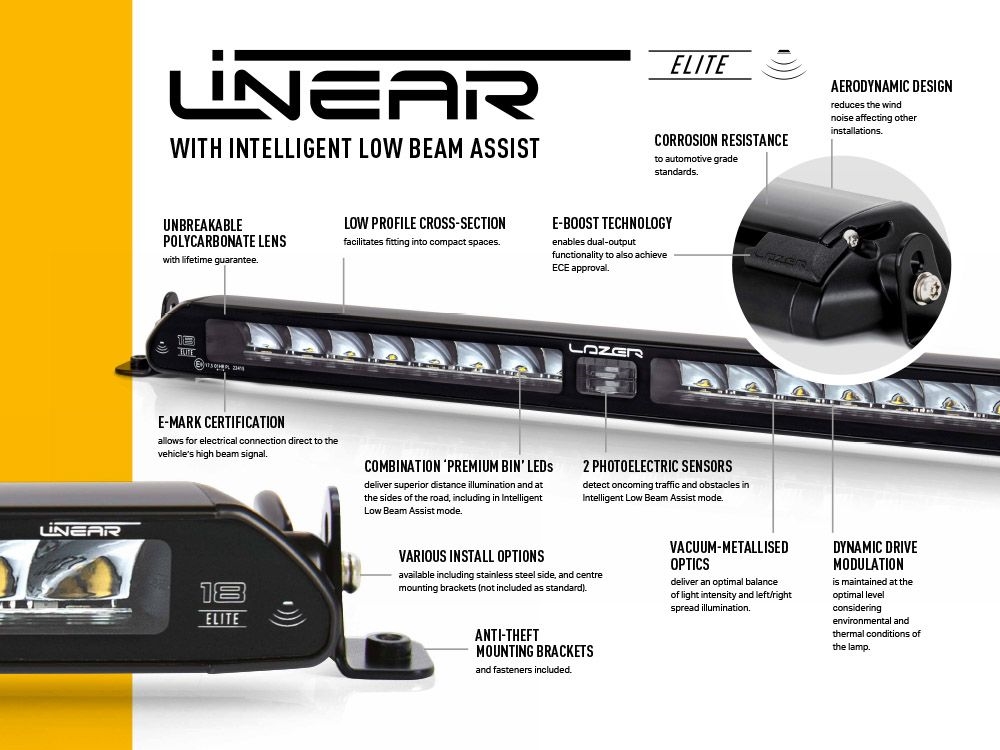

Combination of 48 high efficiency LEDs deliver exceptional lighting performance

Low Beam Assist mode provides superior short/mid-range visibility

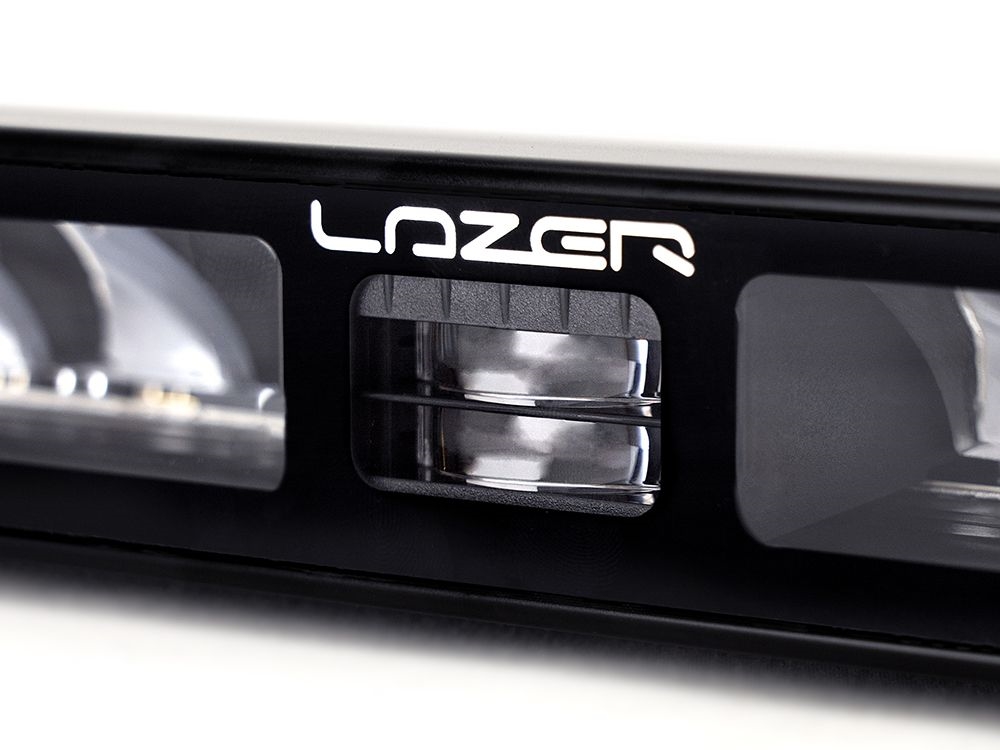

Integrated photoelectric sensors detect oncoming traffic and obstacles so that light output responds to surroundings in Low Beam Assist mode

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions

Sleek, low profile design eases installation

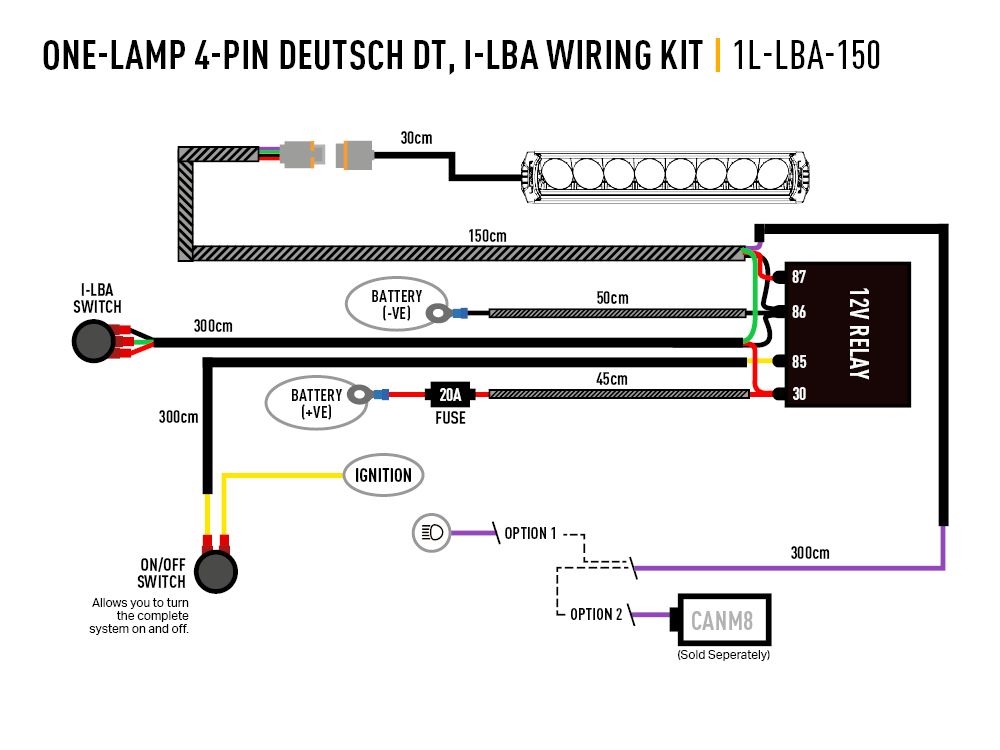

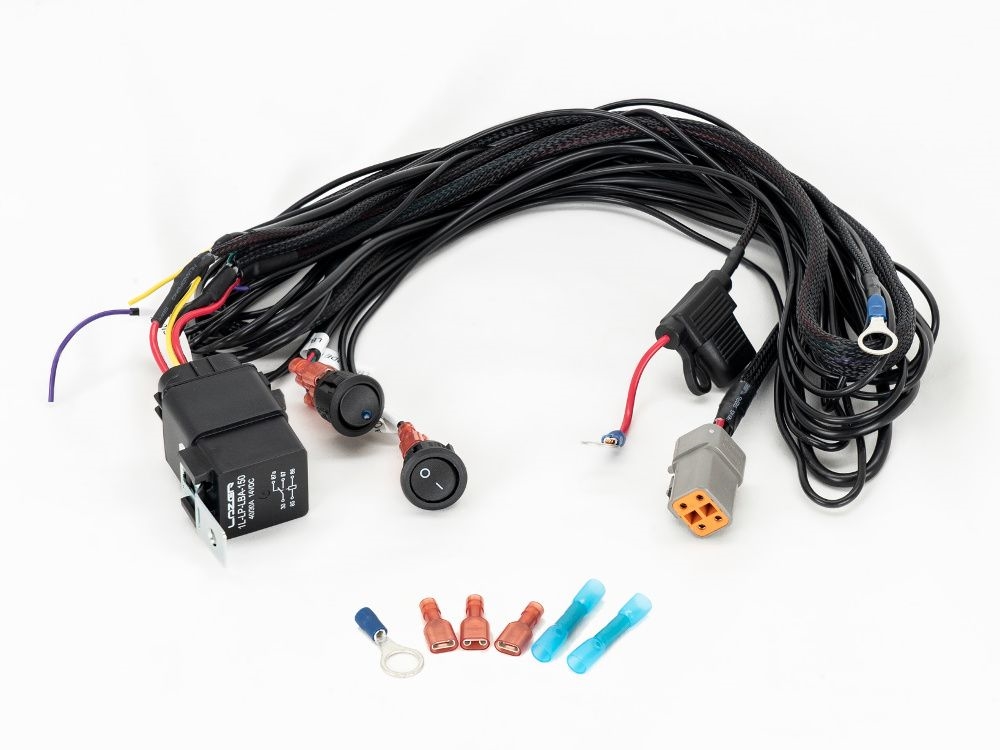

Supplied with Single-Lamp Wiring Kit

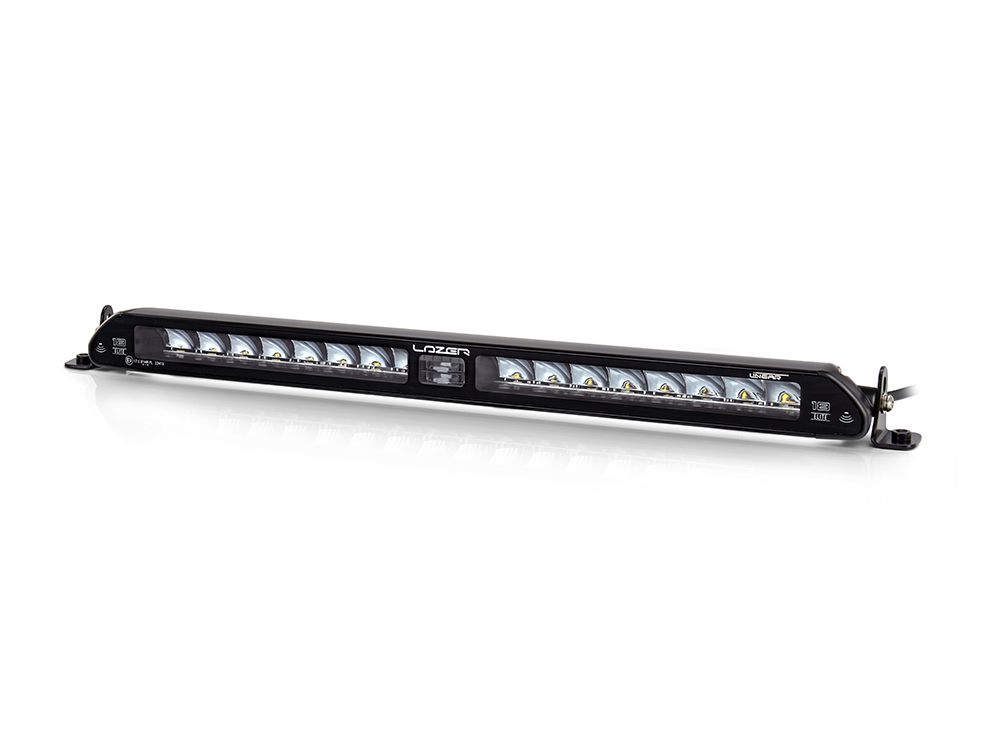

Flexible mounting options – anti-theft side mounting brackets included

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function (E-Boost function)

UNECE approved Reg 10

IP68 watertight

5 year warranty

Electrical connection made via 4-pin Deutsch connectors

Designed and manufactured in UK

Technical Specifications
Based on: 1x Linear-18 Elite with i-LBA.

E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 1.1 kg 1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux
18000 Lm

5538 Lm

Total Driver 'FOV' Flux † 12816 Lm 3943 Lm
Colour Temperature 5000k 5000k
Number of High Output LEDs 48 48
Power Consumption 135 Watts 43 Watts
Current Draw (at 14.4V) 10.4 Amps 3.2 Amps
CERTIFICATION
High Beam N/A ECE R112
E-Mark Ref N/A 17.5

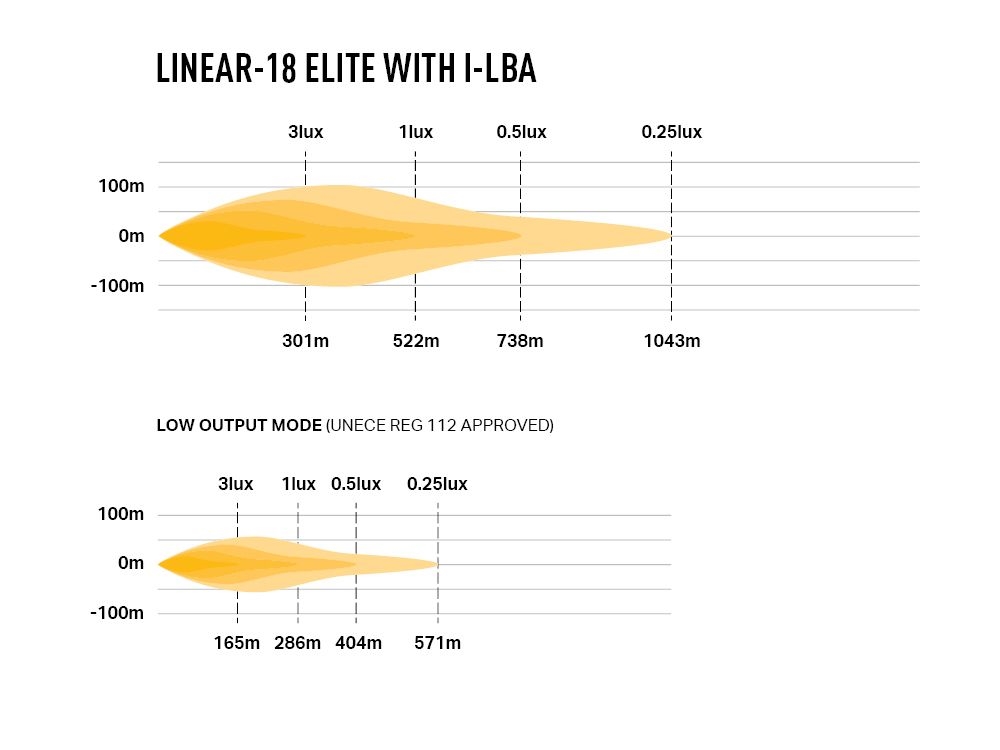

PHOTOMETRIC DATA

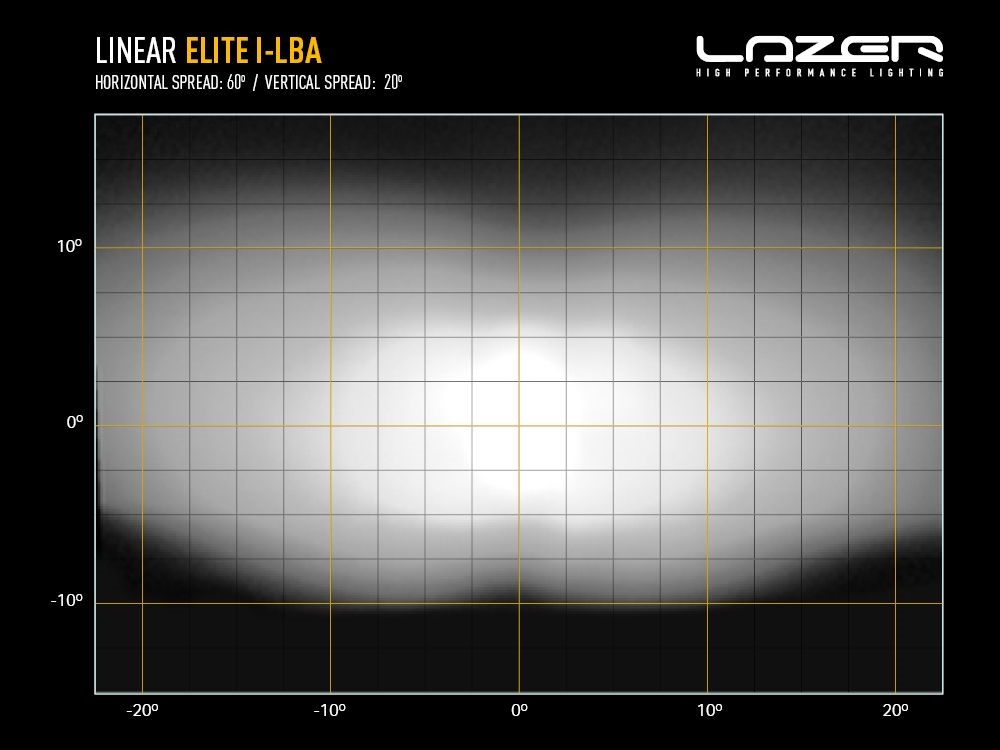

Horiz Beam Angle 60° 60°
0.25 lx Line 1043m 571m
0.5 lx Line 738m 404m
1 lx Line 522m 286m
3 lx Line 301m 165m
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
